ME30A1203F01 - Medical Power Supply - (Version 3) - (SL POWER)
ME30A1203F01 - Medical Power Supply - (Version 3) - (SL POWER)
Images may not represent actual products or finishes.

All repairs should be done by AAADM's Certified Technicians.
List Price: $72.61
Our Price: $50.91
Savings: $21.70


Availability:: Usually Ships in 24 Hours
Product Code: ME30A1203F01
Qty:

Description Technical Specs Extended Information

Features

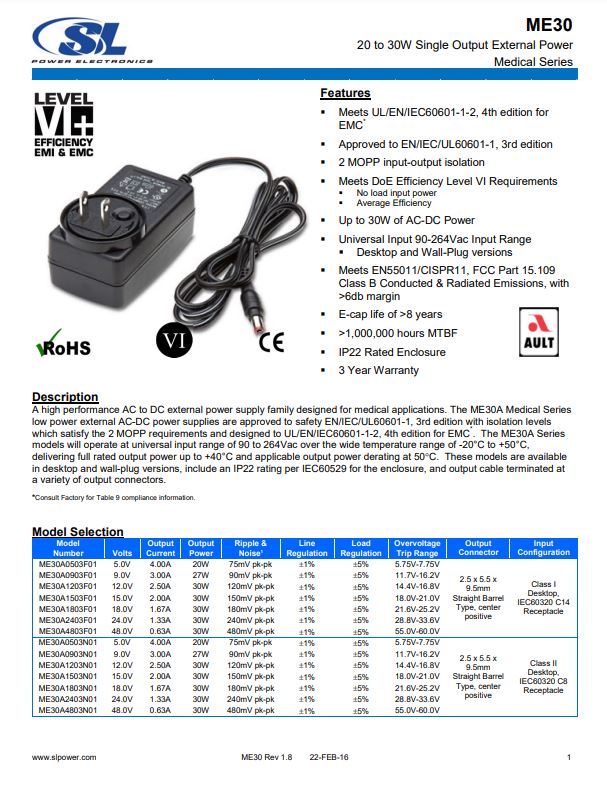

  • ME30A1203F01 - MEDICAL POWER SUPPLY - (SL POWER)

    • SL Power ME30 Series — 20W to 30W Single Output External Power Medical Series:

      A high performance AC to DC external power supply family designed for medical applications. The ME30A Medical Series low power external AC-DC power supplies are approved to safety EN/IEC/UL60601-1, 3rd edition with isolation levels which satisfy the 2 MOPP requirements and designed to UL/EN/IEC60601-1-2, 4th edition for EMC* . The ME30A Series models will operate at universal input range of 90 to 264Vac over the wide temperature range of -20°C to +70°C, delivering full rated output power up to +40°C and applicable output power derating at 70°C. These models are available in desktop and wall-plug versions, include an IP22 rating per IEC60529 for the enclosure, and output cable terminated at a variety of output connectors.

      Features:
    • Meets UL/EN/IEC60601-1-2, 4th edition for EMC*
    • Approved to EN/IEC/UL60601-1, 3rd edition
    • 2 MOPP input-output isolation
    • Meets DoE Efficiency Level VI Requirements
    • No load input power
    • Average Efficiency
    • Up to 30W of AC-DC Power
    • Universal Input 90-264Vac Input Range
    • Desktop and Wall-Plug versions
    • Meets EN55011/CISPR11, FCC Part 15.109 Class B Conducted & Radiated Emissions, with >6db margin
    • E-cap life of >8 years
    • >1,000,000 hours MTBF
    • IP22 Rated Enclosure
    • 3 Year Warranty
