    CV-550SPKV3 - Stand-Alone Proximity Reader & Keypad - (Version 3) - (CAM

    Thumbnail Filmstrip of CV-550SPKV3 - Stand-Alone Proximity Reader & Keypad - (Version 3) - (CAM Images

      Purchase CV-550SPKV3 - Stand-Alone Proximity Reader & Keypad - (Version 3) - (CAM

      SKU: CV-550SPKV3 CV-550SPKV3 - Stand-Alone Proximity Reader & Keypad - (Version 3) - (CAMDEN)

      All repairs should be done by AAADM's Certified Technicians.

      List Price: $267.88
      Our Price: $167.20
      Savings: $100.68

      Availability: Usually Ships in 24 to 48 Hours

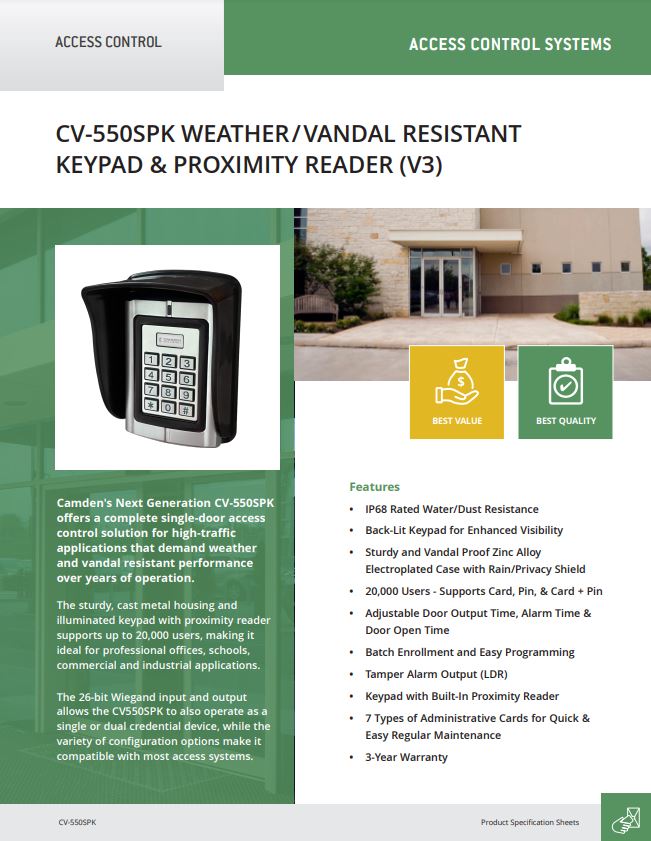

      STAND-ALONE PROXIMITY CARD READER & KEYPAD - (CAMDEN)

      ***Direct Replacement for Older CV-550SPK (VERSION 2)

      • Batch card/tag enrollment
      • Cast metal, heavy duty construction
      • Backlit vandal resistant keypad
      • Privacy Shield
      • Weather resistant IP68 rated
      • Up to 20,000 users - Supports card, PIN, card + PIN (HID 26, 34 and 37 bit, HID and EM format)
      • 4 to 6 digit PIN code length
      • (1) Form 'C' relay output
      • Tamper alarm output
      • Request to exit device input
      • Door contact input
      • Adjustable door alarm time and door open time
      • Wiegand 26 bit output for integration with access control systems
      • Wiegand 26 bit input/outpuit
      • 3 year warranty


      Voltage: 12 VDC +/- 10%
      User Codes: 20,000
      IP Rating: 68
      Idle Current: 25 mA
      Contact Type: (1) Form 'C'
      Contact Rating: 1 Amp @ 30 VDC
      Alarm Output Load: 1 Amp @ 30 VDC
      Ring Bell Load: 1 Amp @ 30 VDC
      Card Read Distance: 2" (50mm) max.
      Card Frequency: 125KHZ, EM and HID
      Card Format: 26, 34 or 37 Bit Wiegand
      Keypad Format: 4 Bit, 8 Bit and Virtual Card Number
      Temp Range: -49°F to 113°F (-45°C to 55°C)
      Dimensions: 5-7/8"H x 4-1/8"W x 3-1/2"D
      (150mm x 104mm x 90mm - with weather shield)

      All use of Original Equipment Manufacturer Names are for reference only. Automatics & More is not a licensee of, or affiliated or connected with any Original Equipment Manufacturers. All repairs should be done by AAADM's Certified Technicians.
