ACCESS CONTROL PACKAGE w/600LB. SINGLE MAGLOCK
***PICTURE shows BOTH Single & Double Door Mag Locks.
There are some slight differences between the NON UL maglocks and the UL listed maglocks shown below.
• Supply voltage must be via UL listed power supply. Using a transformer and rectifier combination will not work. This is due to the voltage requirement and design of the maglock with respect to its UL listing. The maglock requires a smoother VDC signal than what a transformer rectifier combination can supply.
• Available for single doors and double doors without center mullion
***PICTURE shows BOTH Single & Double Door Mag Locks.
- (1) 10PS12-24 Power Supply - UL filtered and regulated
- (1) 10MAGLOCK3UL 600 lb UL LISTED MAGLOCK
- (1) 10R2E Request-to-Exit sensor
- (1) 10ACPBSS1 “Push to Exit” button
- (1) 10BR3X Logic Module
- (1) Wiring diagram
There are some slight differences between the NON UL maglocks and the UL listed maglocks shown below.
• Supply voltage must be via UL listed power supply. Using a transformer and rectifier combination will not work. This is due to the voltage requirement and design of the maglock with respect to its UL listing. The maglock requires a smoother VDC signal than what a transformer rectifier combination can supply.
• Available for single doors and double doors without center mullion
• Available with or without a door position switch. Suffix DS for additional
door position switch option.
• Adjustable re-lock time delay (0 s – 90 s)
• Lock Status Sensor (Bond Sensor) and Visual LEDs
**For use with Independent UL Listed Power Supply**
• Power: 12 / 24 VDC

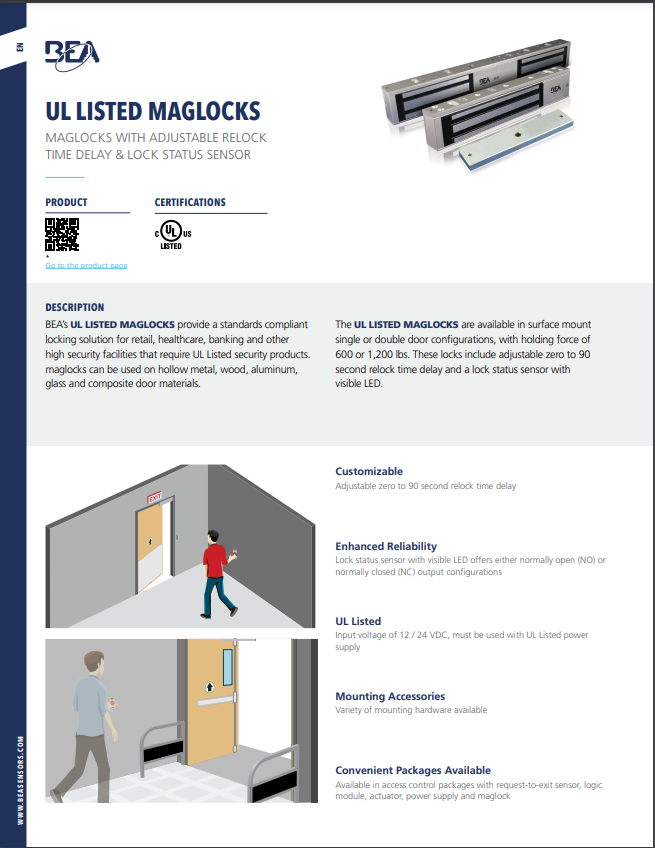

%20CUT%20SHEET%201.PNG)

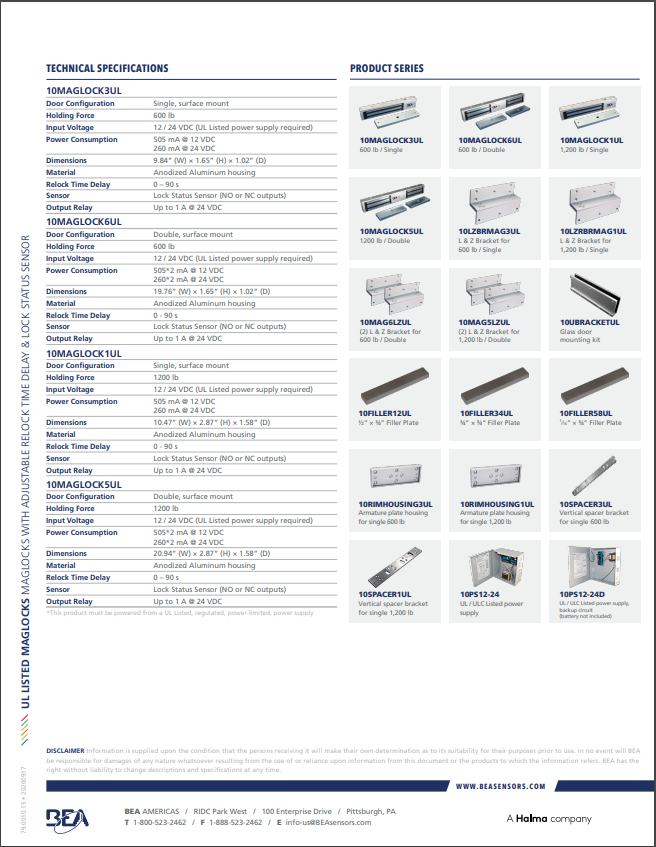

%20CUT%20SHEET%202.PNG)
