AM-LOCK-KIT - BLUE TOUCHLESS ACTUATOR KIT - (For Doors WITH LOCK) - (A&M)
AM-LOCK-KIT - BLUE TOUCHLESS ACTUATOR KIT - (For Doors WITH LOCK) - (A&M)



Alternative Views:
All repairs should be done by AAADM's Certified Technicians.
List Price: $714.00
Our Price: $379.89
Savings: $334.11


Availability:: Usually Ships in 24 Hours
Product Code: AM-LOCK-KIT
Qty:

Description Extended Information

Features

  • What's NEW / Tech Specs

    Our new single actuator kit (AM-LOCK-KIT) includes devices that power and control the access without the need to pull additional wiring to the existing 2 wire push plates.

    ALL other manufacturers REQUIRE ADDITIONAL wiring to power their actuators.

    The kit is designed to simplify the installation process and operation of the door control functionality.

    ANY 12V and 24V (AC/DC) power supply powers all modules in the kit and the electric lock (i.e. electric exit device, electric strike or maglock) if applicable. (Not Included)

    The interior / exterior buttons have touchless door activation and include illuminated icons, as displayed in the images.

    BLUE when the door operator is available.


    GREEN when the button is sending activation signal.

    RED when the door is locked.


    We taken the interface of the Pedestrian Automatic Doors to a whole new level. This new AM-LOCK-KIT - illuminated Touchless Actuators is a perfect solution for today’s high demand of innovative technology and germ-free environments.

    Its slim design, elegant look and sturdy ABS enclosure make this actuator a great add-on to any interior door.

    The AM-LOCK-KIT is an easy non-polarized, 2-Wire installation for new constructions and a simple retrofit solution for any existing products.

    Features:

    • Touchless activation
    • Slim design
    • Easy retrofit, NO additional wires required
    • Illuminated Icon

    BLUE when door operator is available
    GREEN when actuator is sending activation signal
    RED when door is locked
    (Actuator will deny door opening when RED)

    • Lock Icon illuminated when door is locked
    • Audible signal on activation – Option ON/OFF
    • Non-Polarized 2-Wire BUS Interface Control
    • Power consumption 2.4W (Max.)
    • Operating temperature range (-40 to 85 °C)
    • Surface mount
    • Interior use only (Exterior Actuator coming soon)
    • 2 Year Limited Warranty

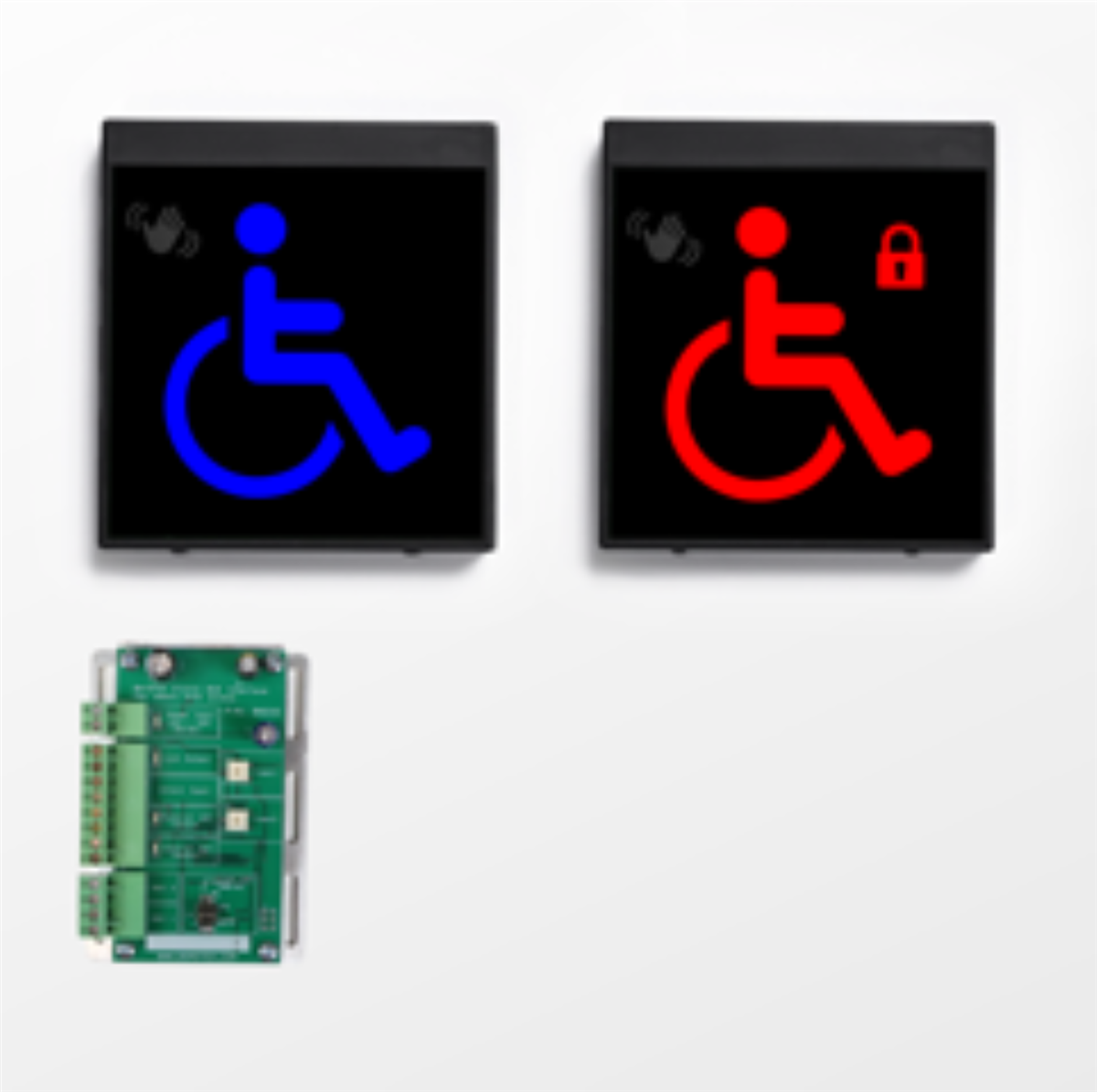

    Kit Includes:

    • 1x BHB02 Touchless Actuator with Lock Icon
    • 1x BHB03 Touchless Actuator with no Lock Icon
    • 1x BAC02 BUS Interface Control (For door with lock that is controlled by any of the following: Door Operator, Access System, Timer, FOB, Card Access etc...)

    Installation:

    • Fits on a 2X4, 4X4 electrical box or can be installed directly on the wall surface
    • Enclosure with mounting bracket and hardware

    Dimensions:

    5.7 x 5.25 x 1 inches (145 x 133 x 25 mm)


Share your knowledge of this product. Be the first to write a review »
